HD3 Bagging Machine
Open-mouth bagger with three filling stations and integrated electronic weighing.
ref / hd3-bagging-machine
unit view
spec sheet
Reference specification.
Confirm the final feed, hopper, bag size, controls and throughput for your material before ordering.
- Capacity
- 6 bags/min at 10kg
- Power
- 1.1 kW
- Voltage
- 230V
- Dimensions
- 2630L x 1875H x 1085W
- Weight
- 350kg
about this machine
- Up to 6 bags per minute at 10 kg, with containers up to 40 kg.
- 220 mm gravity-fed spout with belt or auger feed options.
- Fills bags, burlap sacks, pails and boxes in manual or semi-automatic operation.
- Requires a compressor; compressor not included.
applications
- powders
- pellets
- flakes
- granules
- fibrous materials
- charcoal

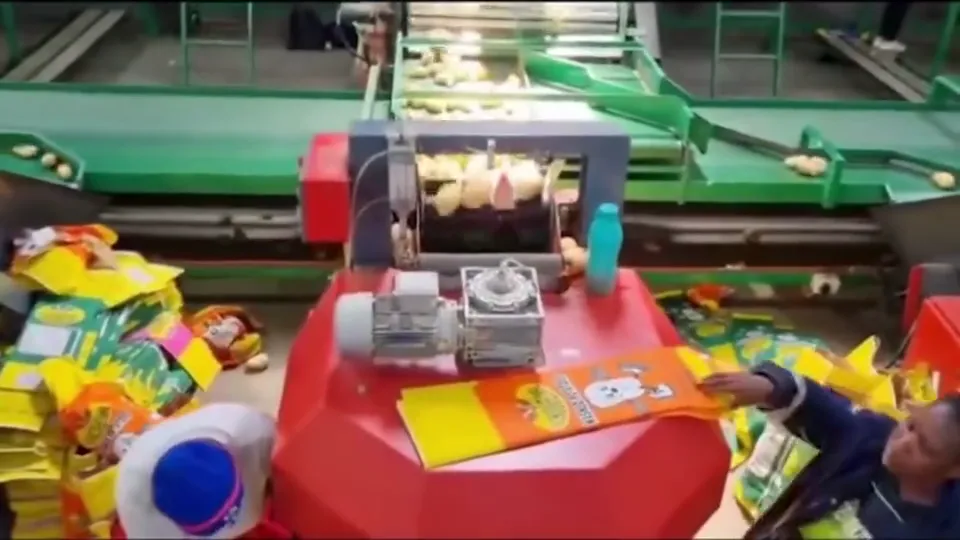

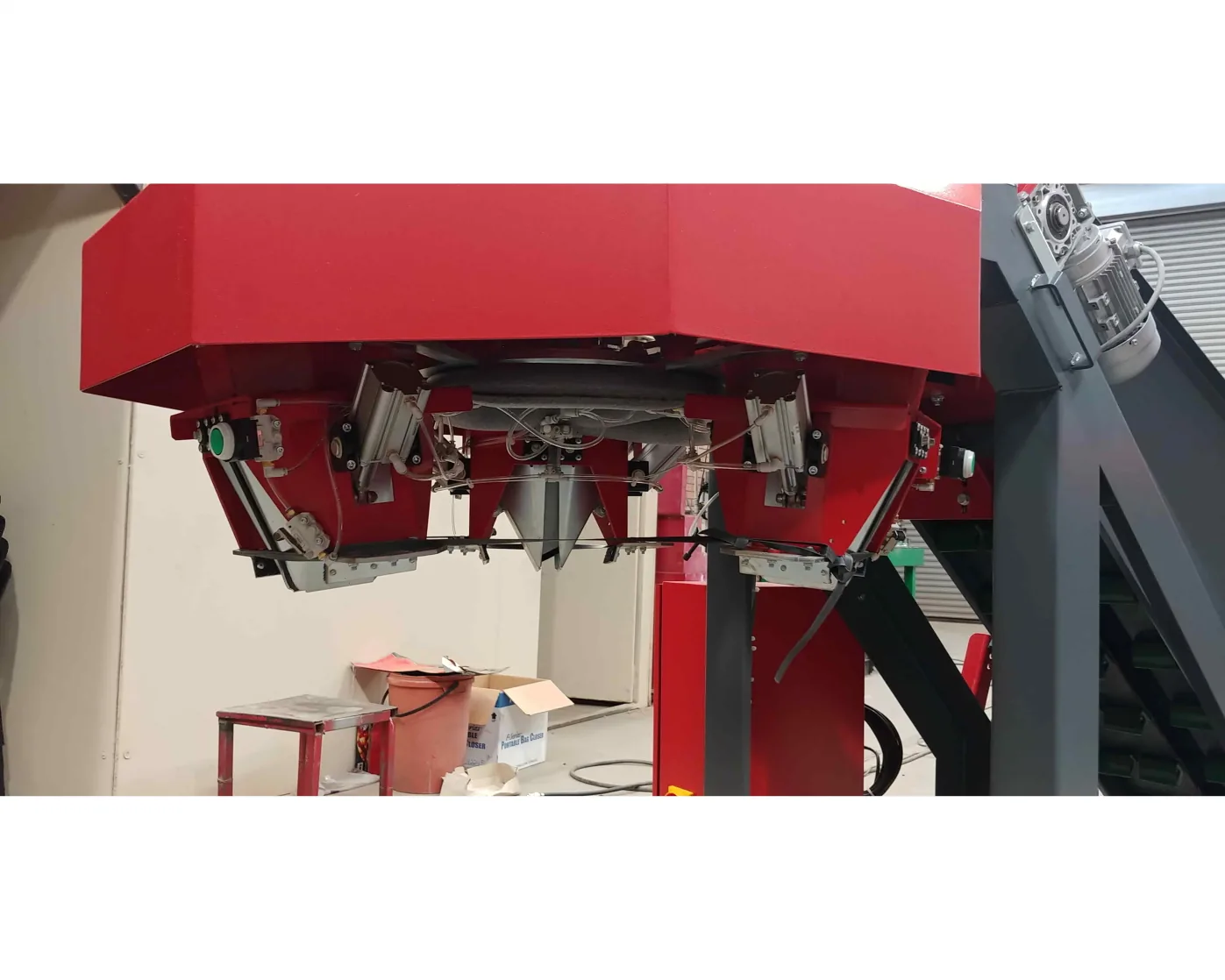

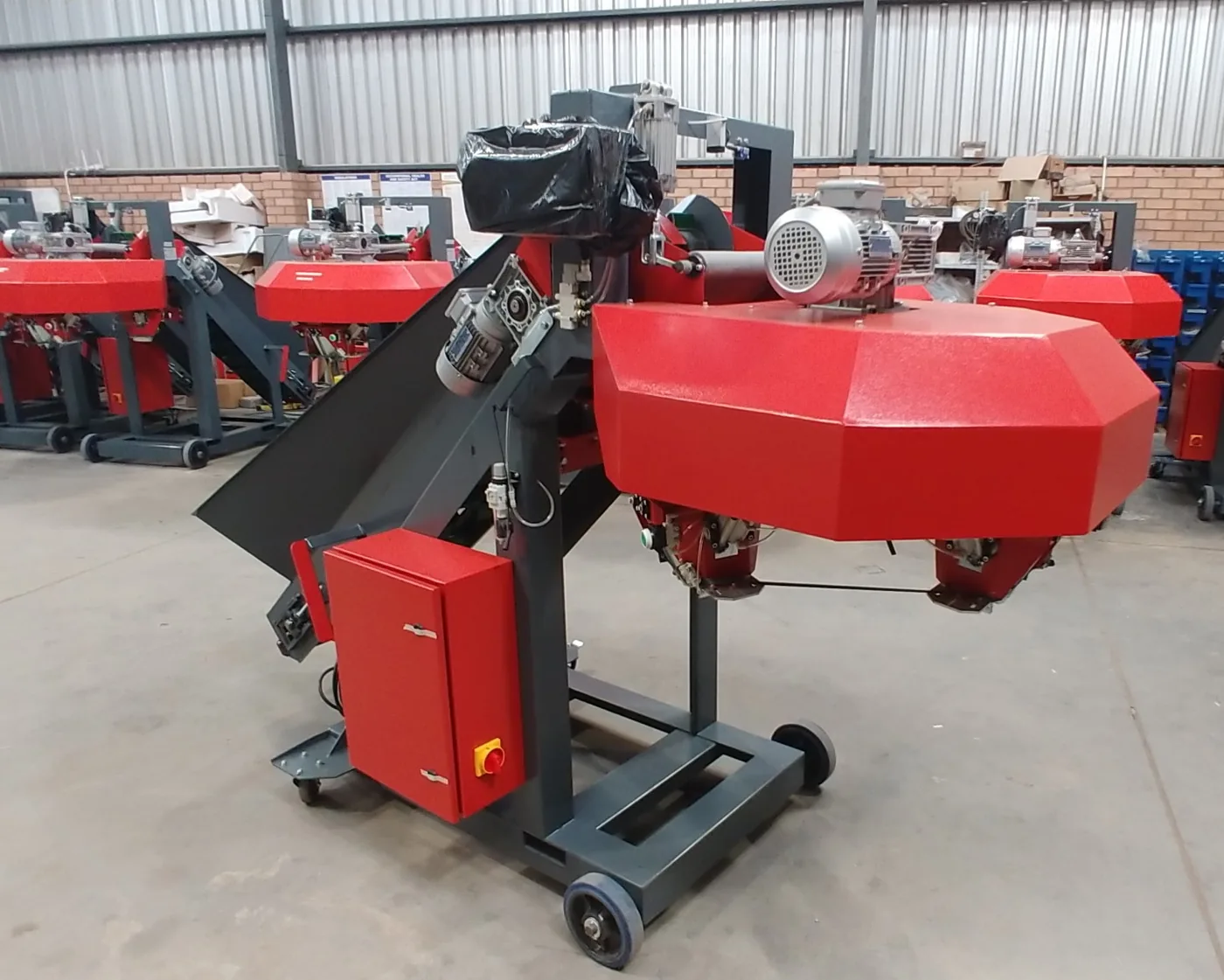

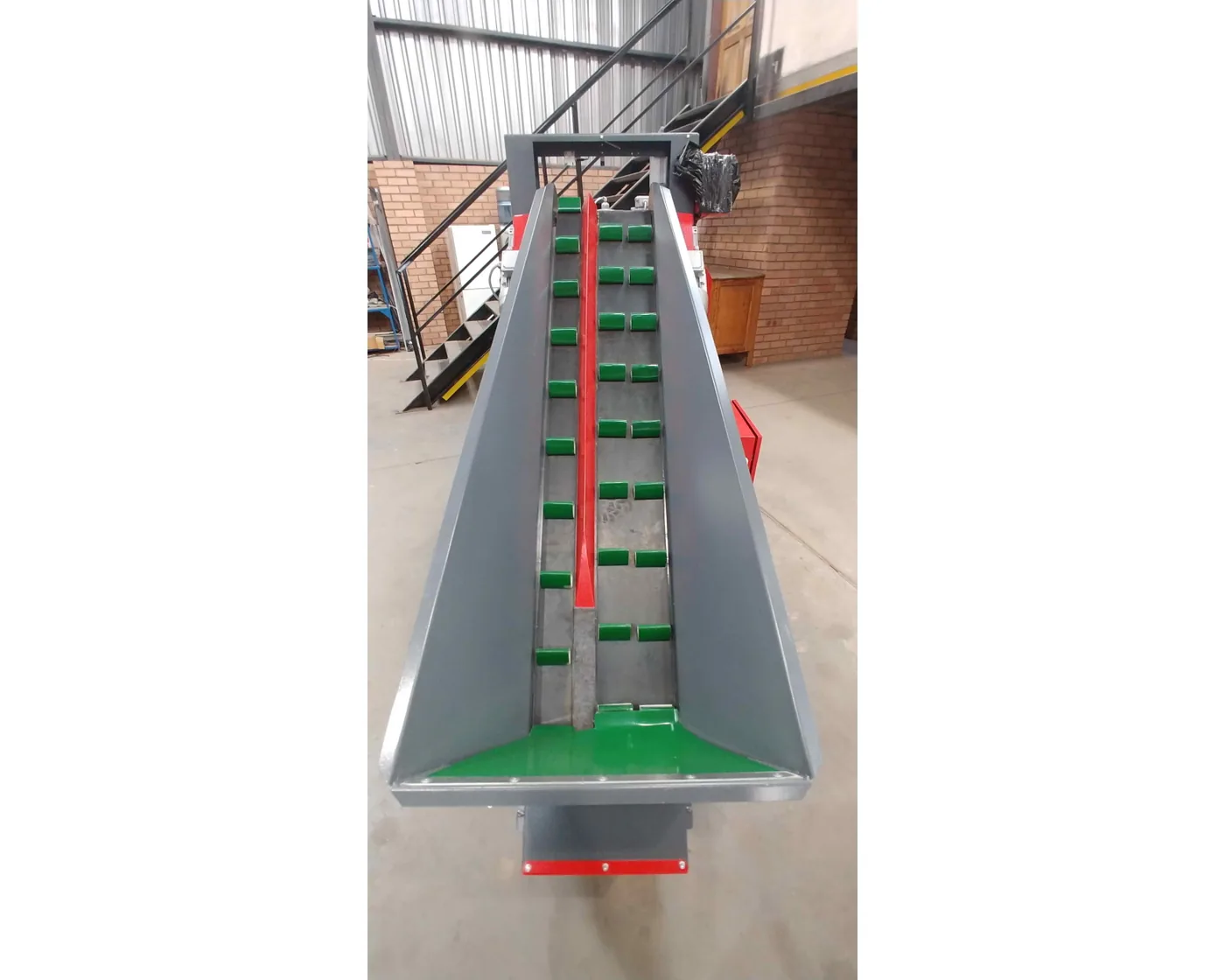

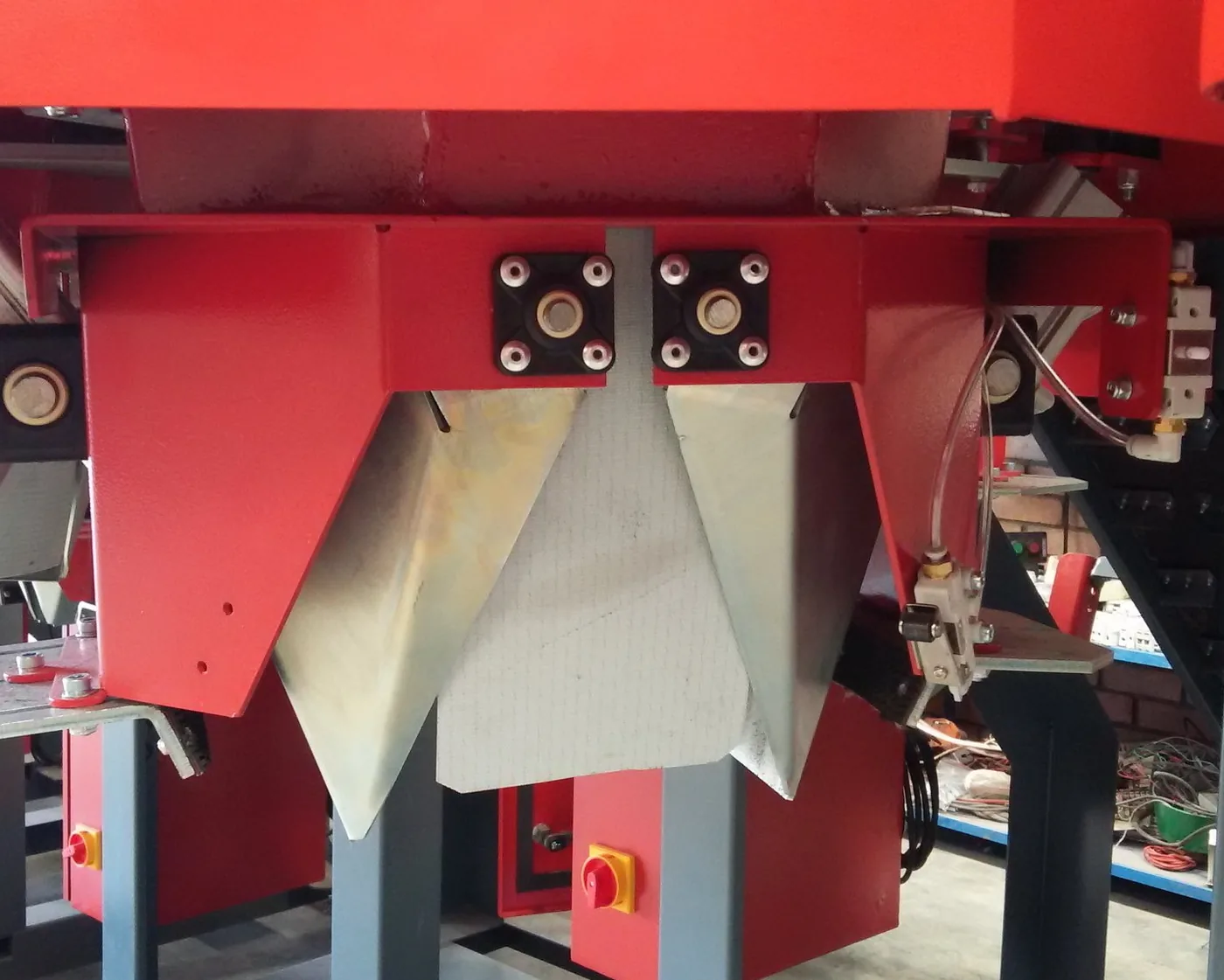

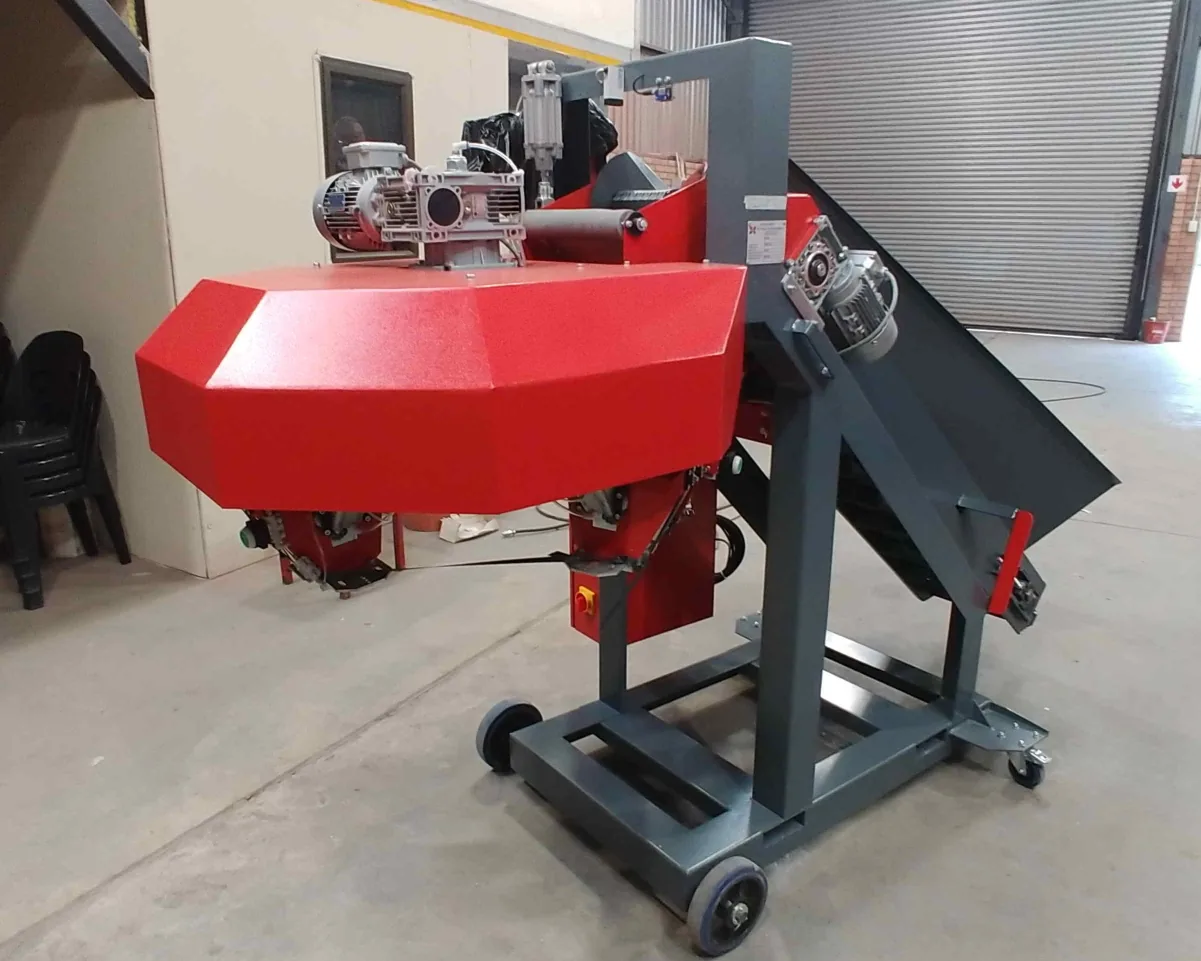

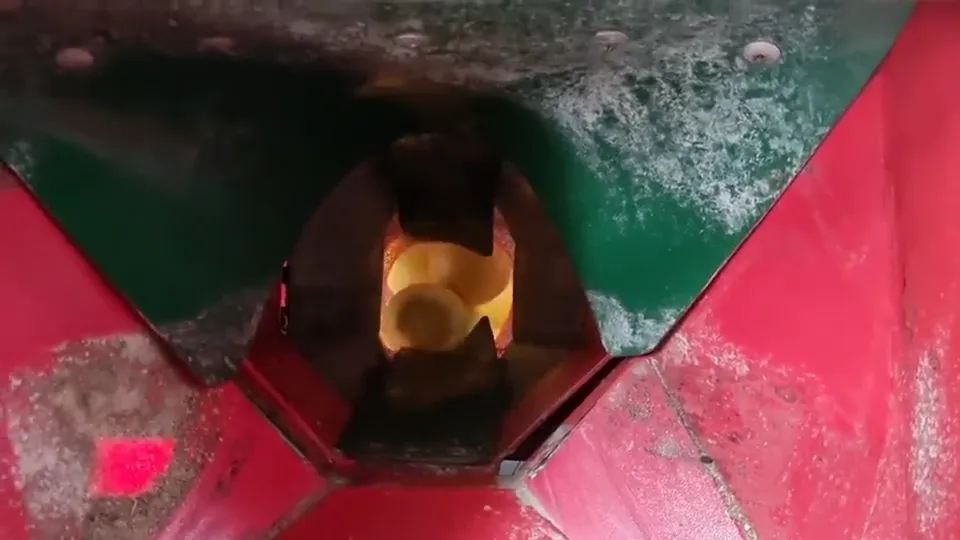

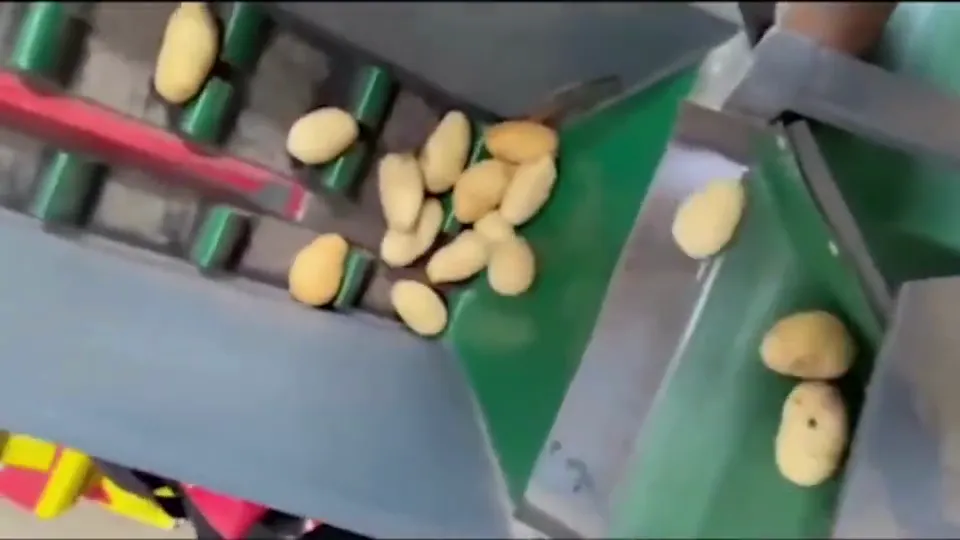

on the floor
The real machine, running.
Photos and clips straight from the workshop floor — no renders. Click a tile to play.
